The catalogue
Rally parts
Parts marked On our cars are ones we run on Betsy, Toshi and the wagon across a full Australian season — described from driving them, not from a brochure.
Not for sale yet. This is a catalogue — no prices and nothing to add to a cart. Ask us about anything here and we will tell you what we know.
Shop for your car
Two taps and the range filters to what fits.
Not sure? Use the VIN or chassis number
Australian-delivered cars have a 17-character VIN. A Japanese import has a chassis number instead — GDB-012345 and the like — and that one tells us more, because the prefix is the chassis code.
Showing 24 of 2,559 products · On our cars marks the ones we have run ourselves
- On our carsCusco
Cusco MZ front limited-slip differential, 1-way
The plated front diff in Betsy's stock six-speed, set 1-way so it locks on power and lets the car turn.
GDView → - On our carsCusco
Cusco MZ rear limited-slip differential, 1.5-way
Fitted into Betsy's standard R180 rear housing, set 1.5-way for some locking on the overrun.
GDView →
On our carsIHIIHI VF38 turbocharger
The twin-scroll turbo on our EJ207, run at 19 psi on E85 for 220 kW at the wheels.
GDView →
On our carsMRFMRF gravel rally tyres
What the GF8 wagon runs on every gravel round of the 2026 season.
Wheels & tyresView →- On our carsSubaru
Subaru STI six-speed gearbox
The six-speed that went into the wagon for its ARC debut, with fresh front and rear diffs.
GF8View →
In the rangeAEMAEM - 150 PSI / 10 BAR Oil Pressure - X-Series Gauge
AEM's X-Series oil pressure gauge, part number 30-0307, reads 0-150psi (0-10bar) in a 52mm (2-1/16in) body, under 0.825in deep with a 0.200in cup depth.
Electronics, timing & commsView →
In the rangeAEMAEM - 150C Oil Temp - X-Series Gauge (Comes with Oil Face Plate)
AEM's X-Series oil temperature gauge, part number 30-0302 + ACC, reads 100-300°F (40-150°C) in a 52mm (2-1/16in) body, under 0.825in deep with a 0.200in cup depth, and comes with the oil temperature faceplate.
Electronics, timing & commsView →

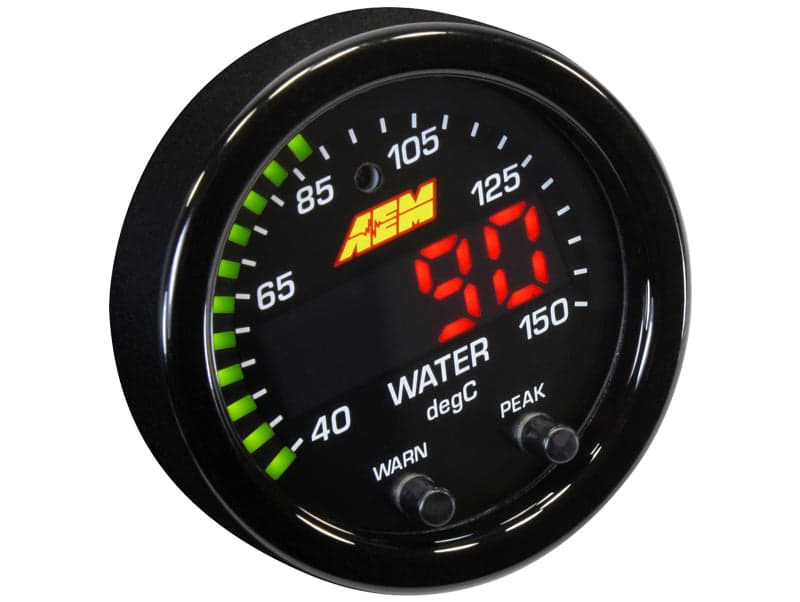

In the rangeAEMAEM - 150C Water Temp - X-Series Gauge
This AEM X-Series water temperature gauge, part number 30-0302, covers 100-300°F (40-150°C) in a 52mm (2-1/16in) body, under 0.825in deep with a 0.200in cup depth, and ships with a black water temperature faceplate.
Electronics, timing & commsView →

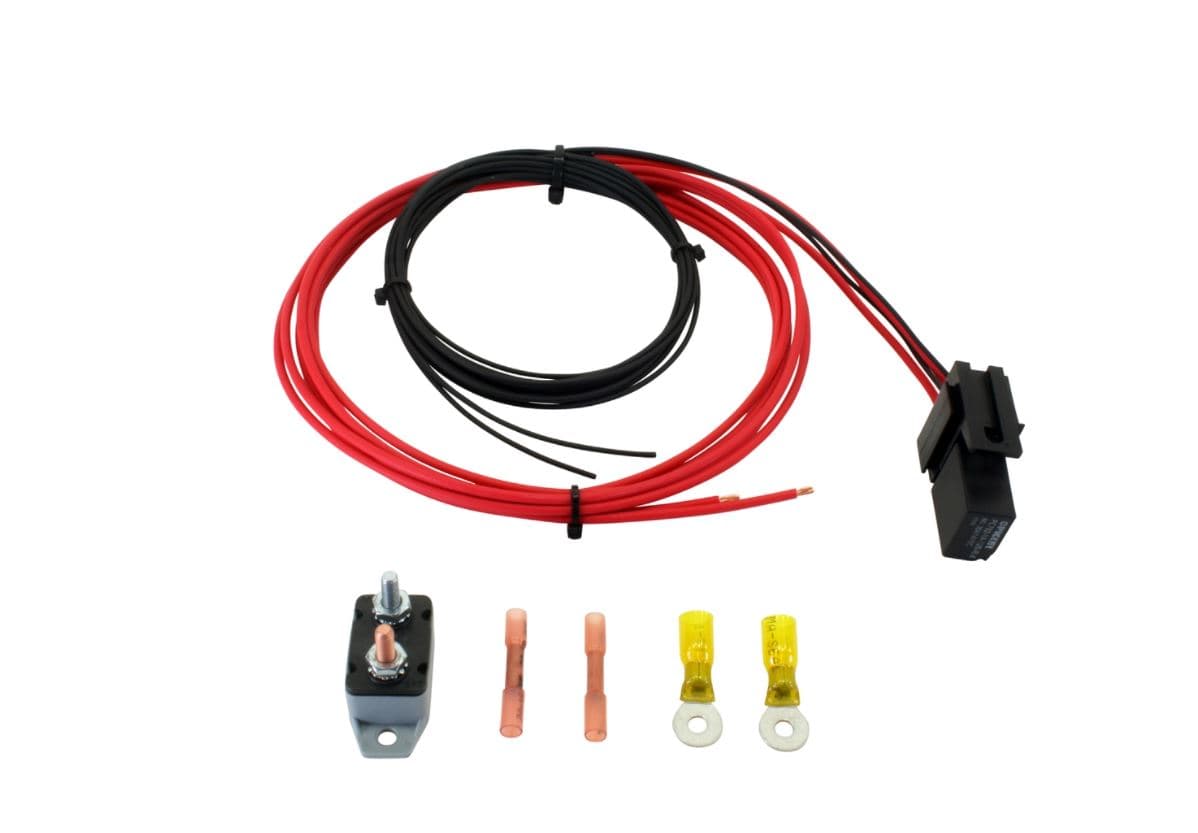

In the rangeAEMAEM - 20 Amp Accessory Hard Wire Relay Kit
AEM's 20 Amp accessory hard wire relay kit, part number 30-2062, wires up with 12 gauge red cable and 10 gauge black cable, both 80in long. It includes a 20 Amp circuit breaker, a relay, a relay socket, terminals and red butt connectors.
Electronics, timing & commsView →
In the rangeAEMAEM - 340LPH - E85 Compatible High Flow Fuel Pump (Forester - SF 97-02)
AEM's 340lph E85 compatible fuel pump, part number 50-1200-400-791, suits the 1997–2002 SF Forester. It flows at 40 psi from a 39mm diameter body, is rated for up to E100 ethanol, M100 methanol or straight petrol, and comes with a pre-filter, hose, clamps, a flying lead, an end cap and a rubber buffer sleeve.
SF-SGView →
In the rangeAEMAEM - 340LPH - E85 Compatible High Flow Fuel Pump (Forester - SG 03-07)
This AEM 340lph E85 compatible fuel pump, part number 50-1200-400-791, suits the 2003–2007 SG Forester. It's a 39mm diameter pump rated at 40 psi, for up to E100 ethanol, M100 methanol or straight petrol, and comes with a pre-filter, hose, clamps, a flying lead, an end cap and a rubber buffer sleeve.
SF-SGView →
In the rangeAEMAEM - 340LPH - E85 Compatible High Flow Fuel Pump (Forester - SH 08-13)
AEM's 340lph E85 compatible fuel pump, part number 50-1215-1008, fits the 2008–2013 SH Forester, with a 39mm diameter body rated at 40 psi. It handles up to E100 ethanol, M100 methanol or straight petrol, and the kit includes a pre-filter, hose, clamps, a flying lead, an end cap and a rubber buffer sleeve.
SH-SJView →
In the rangeAEMAEM - 340LPH - E85 Compatible High Flow Fuel Pump (Liberty - BL/BP 04-09)
This AEM 340lph E85 compatible fuel pump, part number 50-1215-1008, suits the 2004–2009 BL/BP Liberty. The 39mm body is rated at 40 psi and accepts up to E100 ethanol, M100 methanol or straight petrol, supplied with a pre-filter, hose, clamps, a flying lead, an end cap and a rubber buffer sleeve.
BL-BPView →
In the rangeAEMAEM - 340LPH - E85 Compatible High Flow Fuel Pump (STi - G3/VA 08-21)
AEM's 340lph E85 compatible fuel pump, part number 50-1215, suits the G3 generation STI (2008–2014) and the VA generation STI (2014–2021). It's a 39mm diameter pump rated at 40 psi, accepting up to E100 ethanol, M100 methanol or straight petrol, and ships with a pre-filter, hose, clamps, a flying lead, an end cap and a rubber buffer sleeve.
GR-GV · VAView →
In the rangeAEMAEM - 340LPH - E85 Compatible High Flow Fuel Pump (VB/VN 22+)
AEM's 340lph E85 compatible fuel pump, part number 50-1220-1069, suits the WRX VB and VN from 2022. It's 39mm in diameter and 65mm long, rated at 40 psi and compatible with E100 ethanol, M100 methanol or straight petrol. The kit includes a wiring harness, a pre-filter, O-rings and installation instructions.
VBView →
In the rangeAEMAEM - 340LPH - E85 Compatible High Flow Fuel Pump (WRX - G3 08-14)
This AEM 340lph E85 compatible fuel pump, part number 50-1215-1008, suits the G3 generation WRX (2008–2014). The 39mm body is rated at 40 psi for up to E100 ethanol, M100 methanol or straight petrol, and comes with a pre-filter, hose, clamps, a flying lead, an end cap and a rubber buffer sleeve.
GR-GVView →
In the rangeAEMAEM - 340LPH - E85 Compatible High Flow Fuel Pump (WRX - VA 15-20)
AEM's 340lph E85 compatible fuel pump, part number 50-1220-1010, suits the 2015–2020 VA WRX. It's a 39mm diameter pump rated at 40 psi, accepting up to E100 ethanol, M100 methanol or straight petrol, and ships with a pre-filter, hose, clamps, a flying lead, an end cap and a rubber buffer sleeve.
VAView →
In the rangeAEMAEM - 340LPH - E85 Compatible High Flow Fuel Pump (WRX/STi - GC 94-00)
This AEM 340lph E85 compatible fuel pump, part number 50-1200-400-791, suits the 1994–2000 GC WRX and STI. The 39mm body is rated at 40 psi for up to E100 ethanol, M100 methanol or straight petrol, with a pre-filter, hose, clamps, a flying lead, an end cap and a rubber buffer sleeve included.
GC8View →
In the rangeAEMAEM - 340LPH - E85 Compatible High Flow Fuel Pump (WRX/STi - GD 01-07)
AEM's 340lph E85 compatible fuel pump, part number 50-1200-400-791, fits the 2001–2007 GD WRX and STI. It's 39mm in diameter and rated at 40 psi, compatible with up to E100 ethanol, M100 methanol or straight petrol, and comes with a pre-filter, hose, clamps, a flying lead, an end cap and a rubber buffer sleeve.
GDView →
In the rangeAEMAEM - 35PSI / 2.5BAR Boost Display - X-Series Gauge
AEM's X-Series boost display gauge, part number 30-0306, reads up to 35psi (2.5bar) in a 52mm (2-1/16in) body, under 0.825in deep with a 0.200in cup depth, and the faceplate is reversible between psi and bar.
Electronics, timing & commsView →

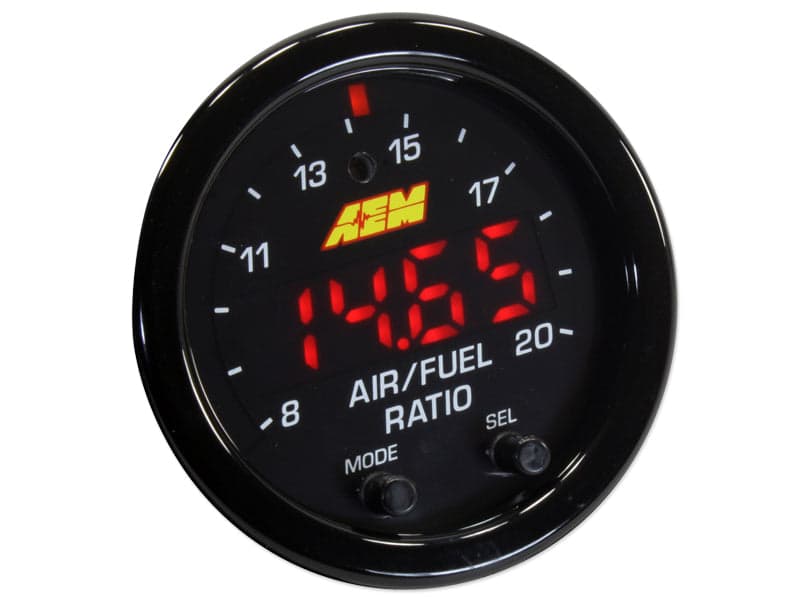

In the rangeAEMAEM - Wideband AFR UEGO - X-Series Gauge
AEM's Wideband AFR UEGO X-Series gauge, part number 30-0300, is a 52mm (2-1/16in) gauge with a black bezel and a dual-faced AFR/Lambda faceplate.
Electronics, timing & commsView →

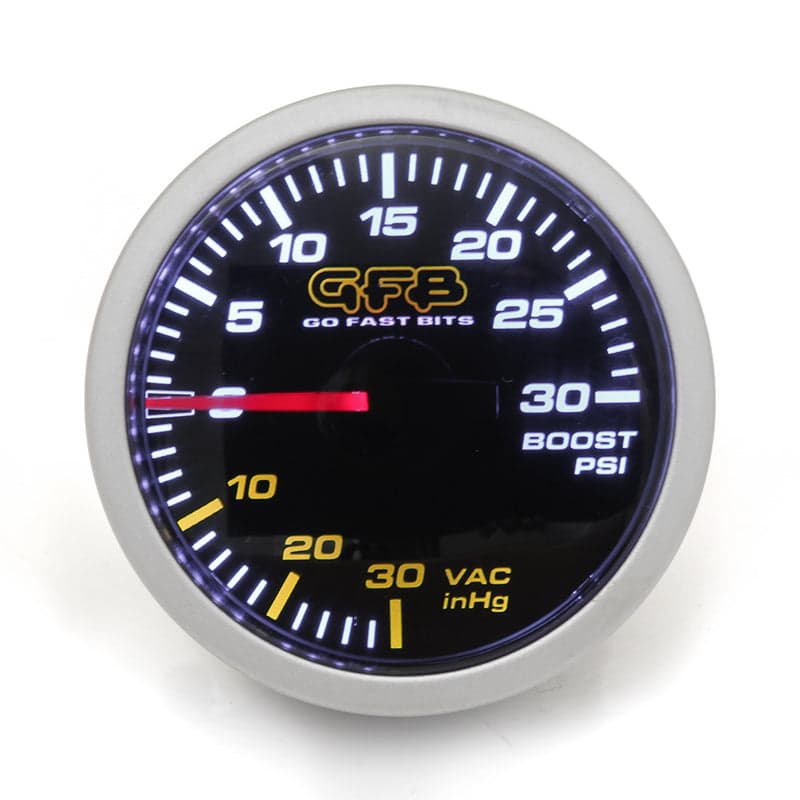

In the rangeGFBGFB - Boost Pressure Gauge
GFB's boost pressure gauge (3730) is 52mm across and reads to 30psi max boost. The box includes a vacuum hose, a tee fitting, a bezel and a bracket.
Electronics, timing & commsView →
In the rangeAeroflowAeroflow - High Flow Filter - Replacement for Process West CAI
Aeroflow's high flow filter, part number AF2711-0930, replaces the filter on a Process West cold air intake (CAI). It's black, built from high-temp polyurethane with a four-layer cotton element.
Service & workshopView →
In the rangeGrimmSpeedGrimmSpeed Dry-Con Panel Air Filter - Liberty GT (04-17)
GrimmSpeed's Dry-Con panel air filter (060091) fits the 2004–2017 Liberty GT. GrimmSpeed quotes a gain of +9 TQ and +6 WHP, a flow rate 62% higher than OEM, and no tune is required after fitting.
BL-BPView →
After something we don’t list? Tell us what you need — what people ask for is what we range next.
The rally gap
We searched all 2,559 parts for sump guards, mudflaps, recovery points and light mounts — the things a gravel car actually needs. There were none. Here is what we would build, and you can tell us which to build first.
Parts we want to buildParts by car
What fits each chassis, plus what we run on ours and the buying guides where we have them.
Browse by category
Drivetrain & differentials
117 listedLSDs, gearboxes, driveshafts and the parts that put power down
Engine & forced induction
785 listedTurbos, internals, cooling and fuel for the EJ and beyond
Suspension & steering
425 listedDampers, springs, arms, bushes and the geometry that holds up
Wheels & tyres
127 listedGravel and tarmac rubber, rally wheels and what breaks them
Safety & crew equipment
8 listedCages, seats, harnesses, suits, helmets and extinguishers

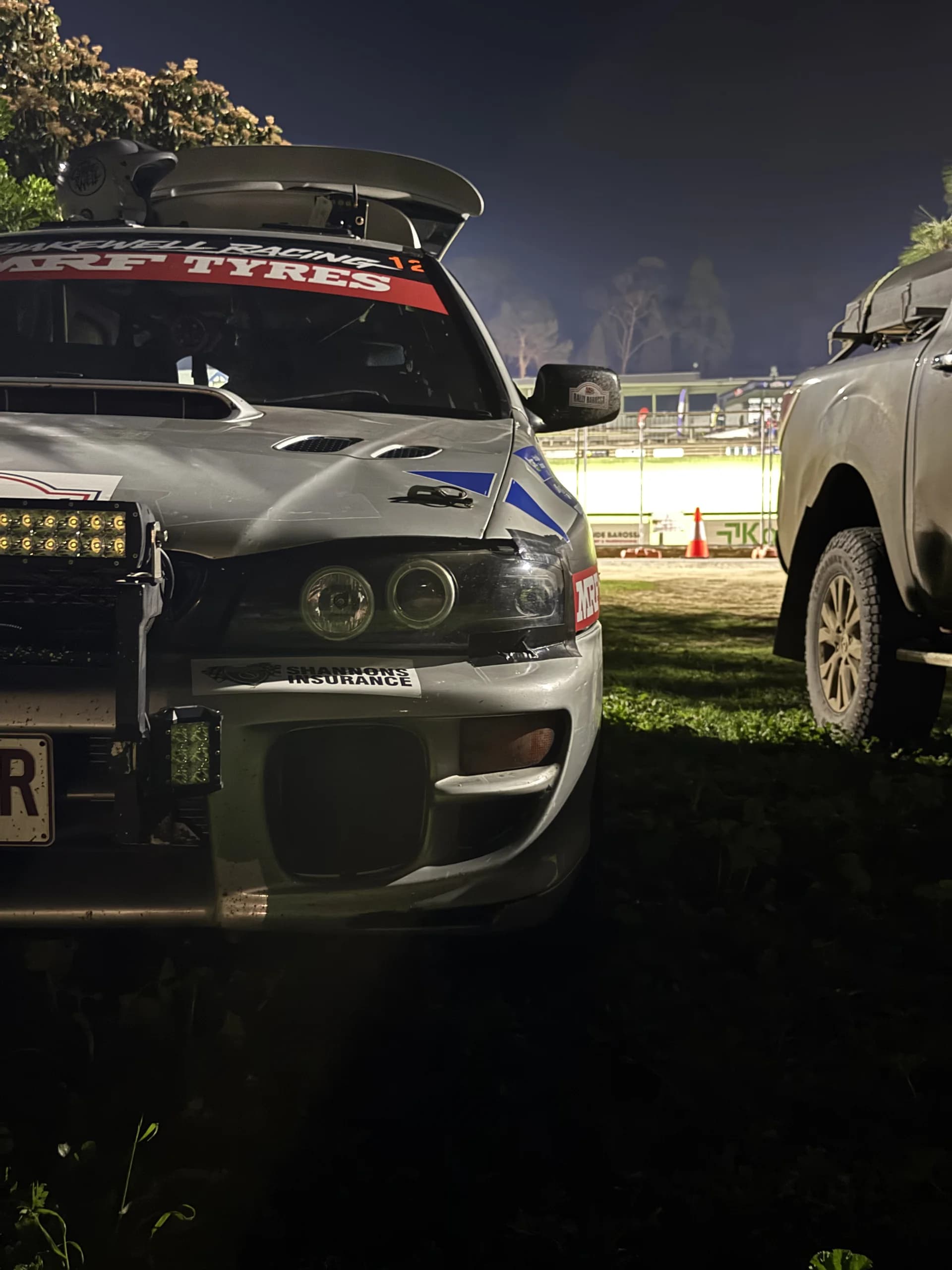

Rally lighting
ComingLight bars, pods, looms and mounting for night stages
Brakes
397 listedPads, discs, fluid, lines and handbrakes
Electronics, timing & comms
79 listedIntercoms, trip meters, tracking, dataloggers and wiring
Intake & exhaust
440 listedTurbo plumbing, intakes, downpipes and the path air takes
Interior & controls
40 listedShifters, pedals, knobs and what you actually touch
Body & aero
112 listedPanels, splitters, guards and carbon
Service & workshop
29 listedJacks, tools, spares kits and what lives in the trailer
Buyer’s guides
The catalogue says what a part is. These say how to avoid buying the wrong one — the ratio arithmetic, the part-number grammar, and what a used listing leaves out.
Why a GDB needs a 3.545 rear diff
The final drive has to match the transfer gear, or the centre diff destroys itself. The arithmetic, and how to read it off a listing.
Reading Subaru STI six-speed gearbox numbers
What TY856 codes and 32000A assembly numbers tell you about generation, DCCD and front LSD — and when they contradict the listing.
Buying used drivetrain parts sight-unseen
What a listing has to state before it is safe to bid, why clutch-type beats helical on stage, and the Japanese terms that carry the real information.
