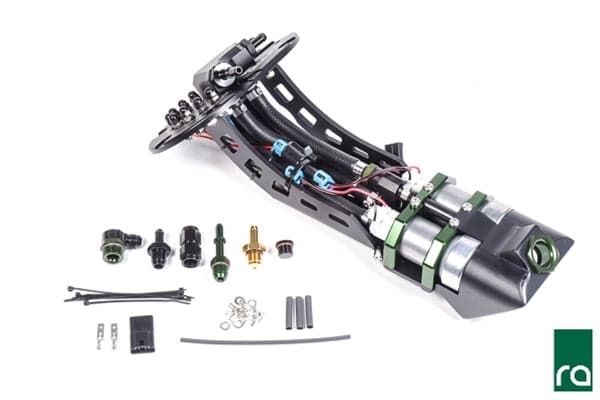

Radium Fuel Pump Hanger - Subaru WRX, STI 94-07/Forester 97-08/Liberty 89-98

In the rangePart no. 20-0340-00

Does it fit?

Fittings: 8AN ORB pump outlet; 6AN ORB crossover/return; -6AN male options
Check valve: 1″ (collector box)
Material: Anodized aluminium (plate, collector box, venturi jet pump)
Fits: GC8 Impreza WRX / STI sedan (1992–2000), GF8 Impreza WRX / STI wagon (1992–2000) + 3 more
Category: Engine & forced induction

Want this, or something like it?

We can’t take an order yet — supply is still being arranged. Ask, and we will tell you what we know about it and let you know when it is available. What people ask for is what we range first.

Fitment is confirmed, not guessed
A chassis is listed only where the part is on one of our cars or on the manufacturer’s own application list.
Some of this is on our cars
Parts marked On our cars are ones we race. Those descriptions are written from running them, not from a brochure.
A person answers
Enquiries go to Michael, who races the cars. Tell us the car and what you are trying to fix.

Not a shop yet — no prices and no checkout. How this catalogue works

Specifications

Brand: Radium
Part number: 20-0340-00
Fittings: 8AN ORB pump outlet; 6AN ORB crossover/return; -6AN male options
Check valve: 1″ (collector box)
Material: Anodized aluminium (plate, collector box, venturi jet pump)
In the box: 65 micron sock filters (when pumps selected)
Fits: GC8 Impreza WRX / STI sedan (1992–2000), GF8 Impreza WRX / STI wagon (1992–2000), GD Impreza WRX / STI (2000–2007), GG Impreza WRX wagon (2000–2007), SF-SG Forester (1997–2008)
Category: Engine & forced induction

Figures as published for this part; fitment is only what we have confirmed. Check critical dimensions against your car before ordering.

About this part

Radium's fuel pump hanger (20-0340-00) covers the WRX and STI from 1994 to 2007, the Forester from 1997 to 2008, and the Liberty from 1989 to 1998. It uses an 8AN ORB pump outlet with a 6AN ORB crossover/return, plus -6AN male options, and a 1in check valve in the collector box. The plate, collector box and venturi jet pump are anodised aluminium, and 65 micron sock filters are included when pumps are selected.
