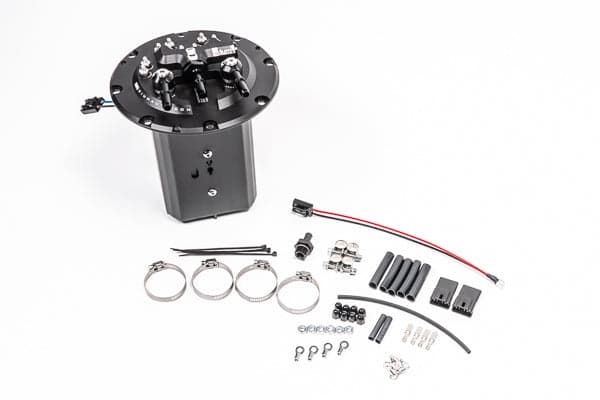

Radium Fuel Pump Hanger - Subaru WRX 08-21/STI 08-21/FXT 08-18/LGT 04-09

In the rangePart no. 20-0782-00

Does it fit?

Flow rate: 355 LPH per fill valve (710 LPH total)
Fittings: 8AN ORB (3/4″-16) outlet; 6AN ORB (9/16″-18) return/crossover
Material: Anodized aluminium collector box
Fits: GR-GV Impreza WRX STI (2008–2014), VA WRX / STI (2014–2021) + 2 more
Category: Engine & forced induction

Want this, or something like it?

We can’t take an order yet — supply is still being arranged. Ask, and we will tell you what we know about it and let you know when it is available. What people ask for is what we range first.

Fitment is confirmed, not guessed
A chassis is listed only where the part is on one of our cars or on the manufacturer’s own application list.
Some of this is on our cars
Parts marked On our cars are ones we race. Those descriptions are written from running them, not from a brochure.
A person answers
Enquiries go to Michael, who races the cars. Tell us the car and what you are trying to fix.

Not a shop yet — no prices and no checkout. How this catalogue works

Specifications

Brand: Radium
Part number: 20-0782-00
Flow rate: 355 LPH per fill valve (710 LPH total)
Fittings: 8AN ORB (3/4″-16) outlet; 6AN ORB (9/16″-18) return/crossover
Material: Anodized aluminium collector box
Fits: GR-GV Impreza WRX STI (2008–2014), VA WRX / STI (2014–2021), SH-SJ Forester (2008–2018), BL-BP Liberty / Outback (2003–2009)
Category: Engine & forced induction

Figures as published for this part; fitment is only what we have confirmed. Check critical dimensions against your car before ordering.

About this part

Radium's fuel pump hanger (20-0782-00) is built for the WRX and STI from 2008 to 2021, the FXT from 2008 to 2018, and the LGT from 2004 to 2009. It flows 355 LPH per fill valve, 710 LPH combined, through an 8AN ORB (3/4in-16) outlet and a 6AN ORB (9/16in-18) return/crossover, in an anodised aluminium collector box.
