Radium/Injector Dynamics Fuel Upgrade Kit Subaru BRZ/Toyota 86, GR86 12+ PSR-1050-KIT-5

In the rangePart no. PSR-1050-KIT-5

Does it fit?

Engine: FA20
Flow rate: 1065cc/min @ 3.0 bar
Material: Anodised aluminium
Fits: ZC6 BRZ (2012–2020), ZD8 BRZ (2021–)
Category: Engine & forced induction

Want this, or something like it?

We can’t take an order yet — supply is still being arranged. Ask, and we will tell you what we know about it and let you know when it is available. What people ask for is what we range first.

Fitment is confirmed, not guessed
A chassis is listed only where the part is on one of our cars or on the manufacturer’s own application list.
Some of this is on our cars
Parts marked On our cars are ones we race. Those descriptions are written from running them, not from a brochure.
A person answers
Enquiries go to Michael, who races the cars. Tell us the car and what you are trying to fix.

Not a shop yet — no prices and no checkout. How this catalogue works

Specifications

Brand: Radium
Part number: PSR-1050-KIT-5
Engine: FA20
Flow rate: 1065cc/min @ 3.0 bar
Material: Anodised aluminium
Fittings: 8AN ORB end ports, 6AN ORB centre port

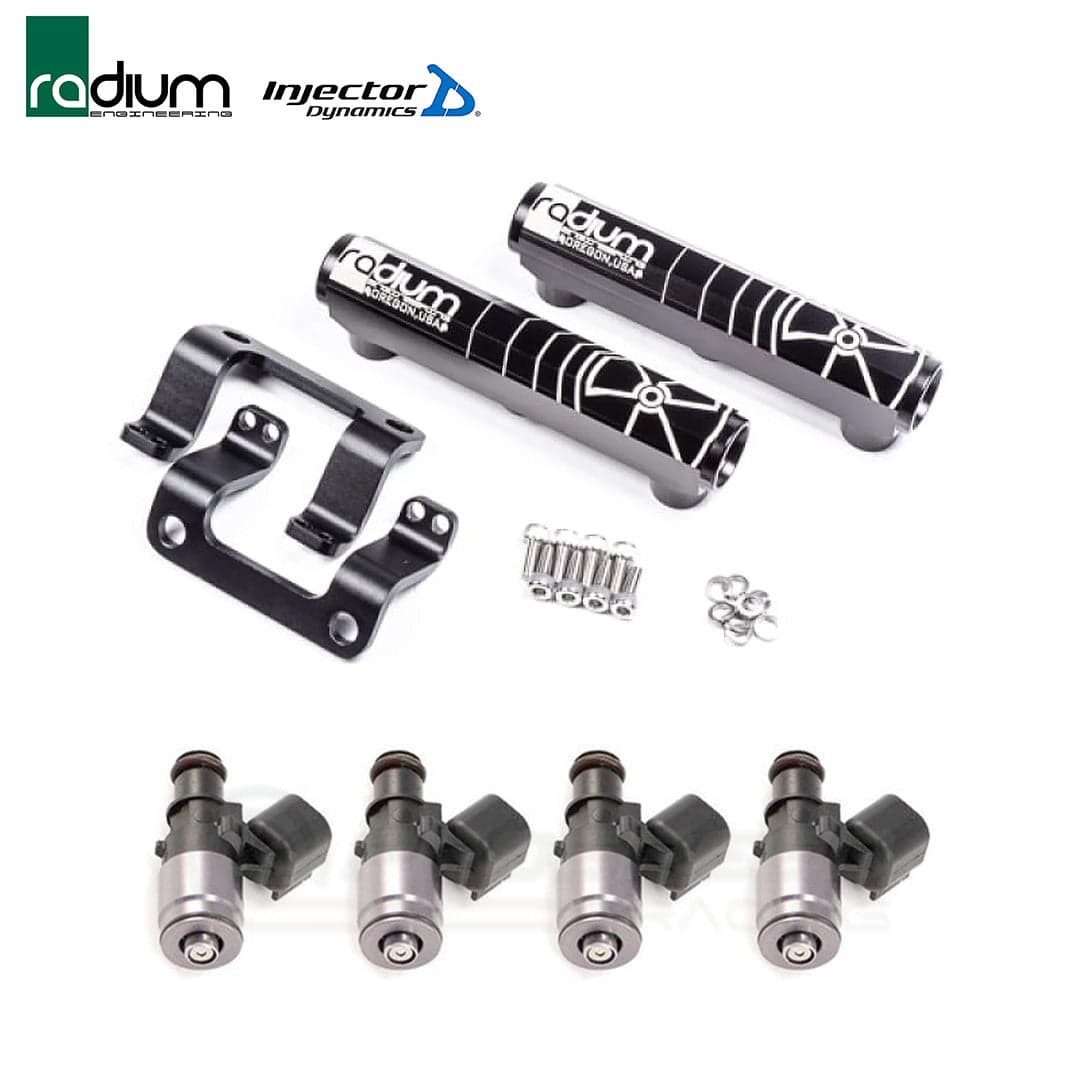

In the box: 4x ID1050-XDS injectors, high-flow fuel rails
Fits: ZC6 BRZ (2012–2020), ZD8 BRZ (2021–)
Category: Engine & forced induction

Figures as published for this part; fitment is only what we have confirmed. Check critical dimensions against your car before ordering.

About this part

This Radium/Injector Dynamics fuel upgrade kit (PSR-1050-KIT-5) is built for the FA20-engined BRZ, Toyota 86 and GR86; the BRZ chassis runs from 2012 to 2020 and then 2021 on. It flows 1065cc/min at 3.0 bar through anodised aluminium rails, with 8AN ORB end ports and a 6AN ORB centre port, and includes four ID1050-XDS injectors with high-flow fuel rails.
