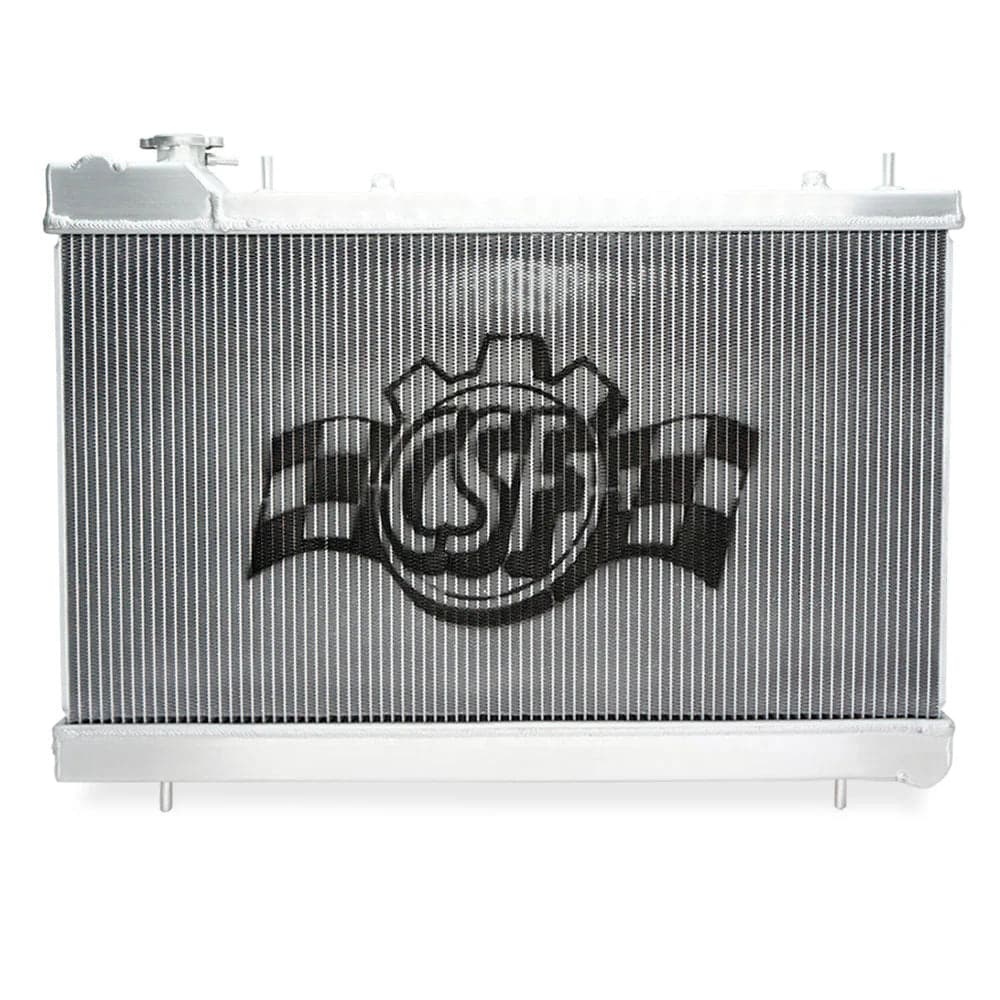

CSF Racing - 2-Row 42mm Race Spec Alumnium Radiator - Forester SG XT (03-07)

In the rangePart no. CSF7235

Does it fit?

Core size: 2-row, 42mm core
Material: Aluminium core, CNC billet aluminium tanks
Max pressure: 1.4 bar (radiator cap)
Fits: SF-SG Forester (1997–2008)
Category: Engine & forced induction

Want this, or something like it?

We can’t take an order yet — supply is still being arranged. Ask, and we will tell you what we know about it and let you know when it is available. What people ask for is what we range first.

Fitment is confirmed, not guessed
A chassis is listed only where the part is on one of our cars or on the manufacturer’s own application list.
Some of this is on our cars
Parts marked On our cars are ones we race. Those descriptions are written from running them, not from a brochure.
A person answers
Enquiries go to Michael, who races the cars. Tell us the car and what you are trying to fix.

Not a shop yet — no prices and no checkout. How this catalogue works

Specifications

Brand: CSF
Part number: CSF7235
Core size: 2-row, 42mm core
Material: Aluminium core, CNC billet aluminium tanks
Max pressure: 1.4 bar (radiator cap)
Thread: 1/8″ NPT (temp sensor port)
Finish: Raw aluminium, polished, or satin black (options)
Cooling tubes: 75 (vs 58 OEM)
Fin height: 6.5mm (vs 9mm OEM)
Construction: 100% TIG-welded aluminium
Fits: SF-SG Forester (1997–2008)
Category: Engine & forced induction

Figures as published for this part; fitment is only what we have confirmed. Check critical dimensions against your car before ordering.

About this part

CSF Racing's 2-row 42mm race-spec aluminium radiator (CSF7235) is built for the 2003–2007 Forester SG XT. The core is aluminium with CNC billet aluminium tanks, 100% TIG-welded, running 75 cooling tubes against the OEM's 58, at a 6.5mm fin height against the OEM's 9mm. The radiator cap is rated to 1.4 bar, with a 1/8-inch NPT port for a temperature sensor, and the finish is raw aluminium, polished or satin black.
